Laboratory XFLB Deluxe Mini Flotation Pilot Plant
Description for DELUXE Pilot Flotation Plant
This flotation pilot plant is a complete, but still small miniature froth flotation plant is ideal for in-house pilot plant
testing your mining project. Its layout is for a mono-metallic flowsheet (buy section for each additional metal). Its flotation

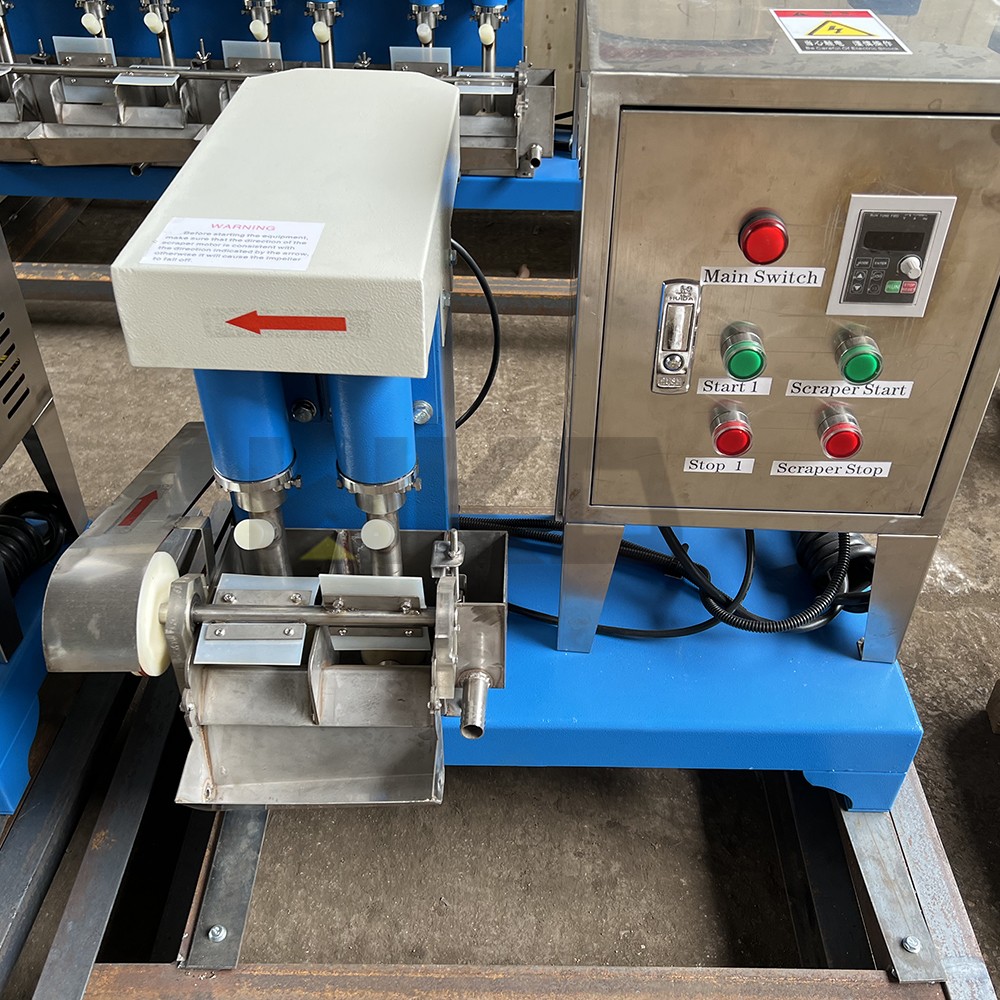

cell agitators tip speed can be varied between 3 set-points. The froth paddles or scrapers also offer 2 rotation settings. As
presented, this small laboratory float plant weighs 160 kilo and offers:

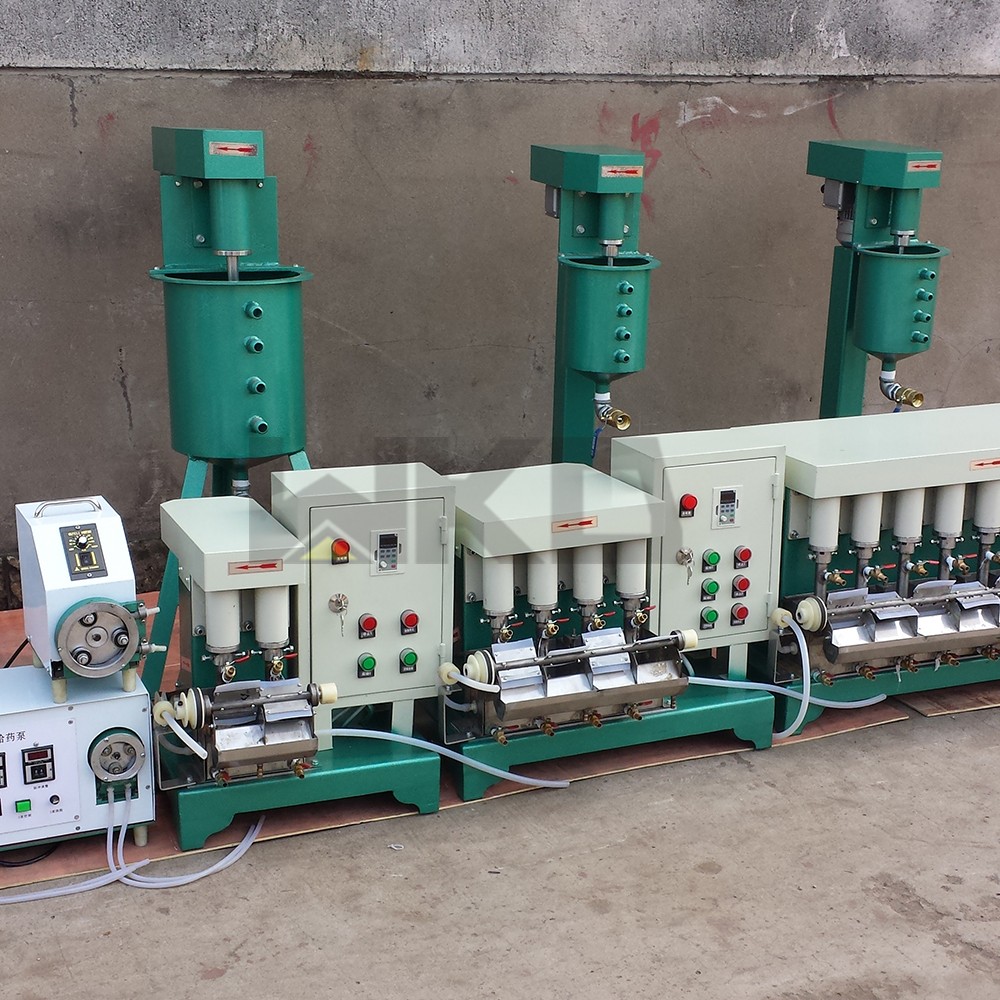

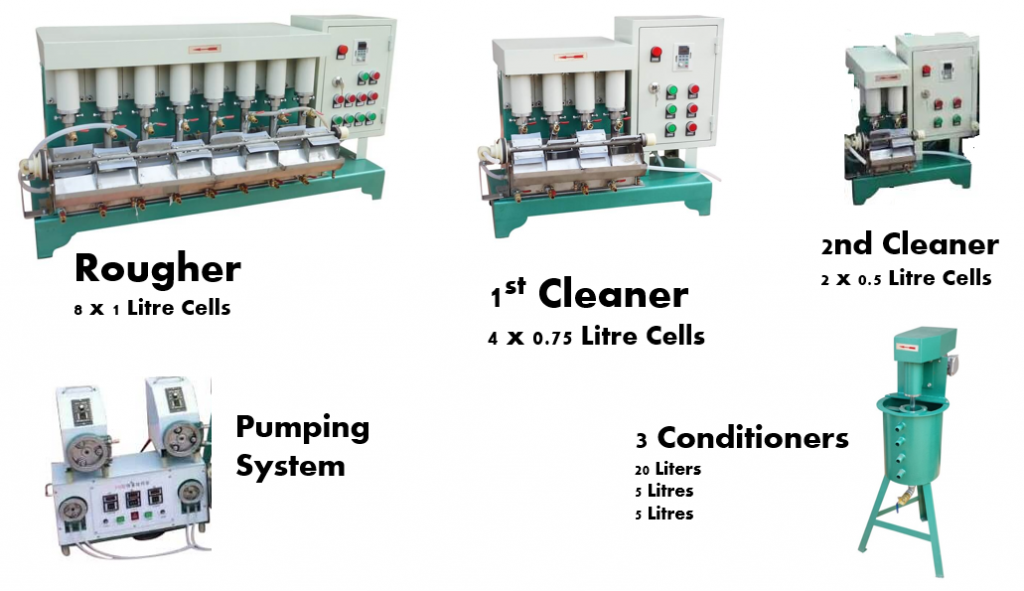

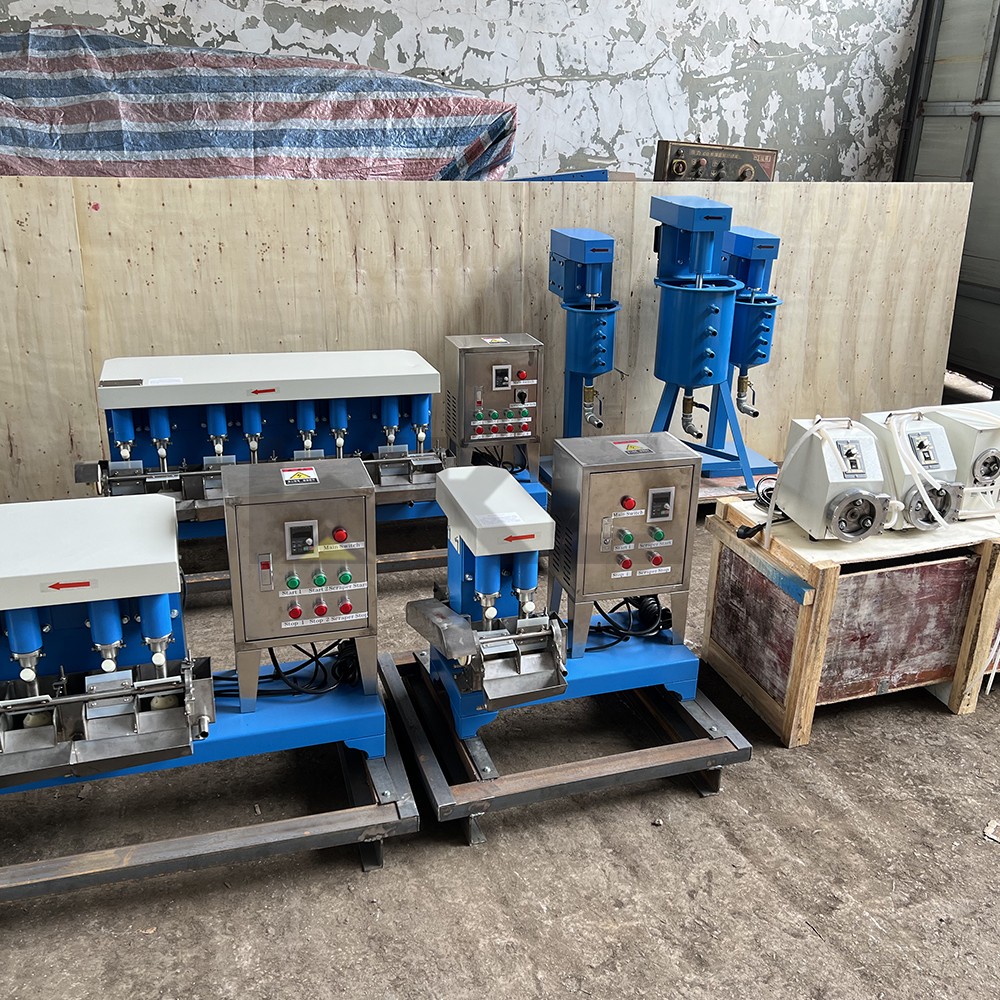

The components for Small Deluxe Mini-Flotation Pilot Plant XFLB Closed Circuit Flotation Machine

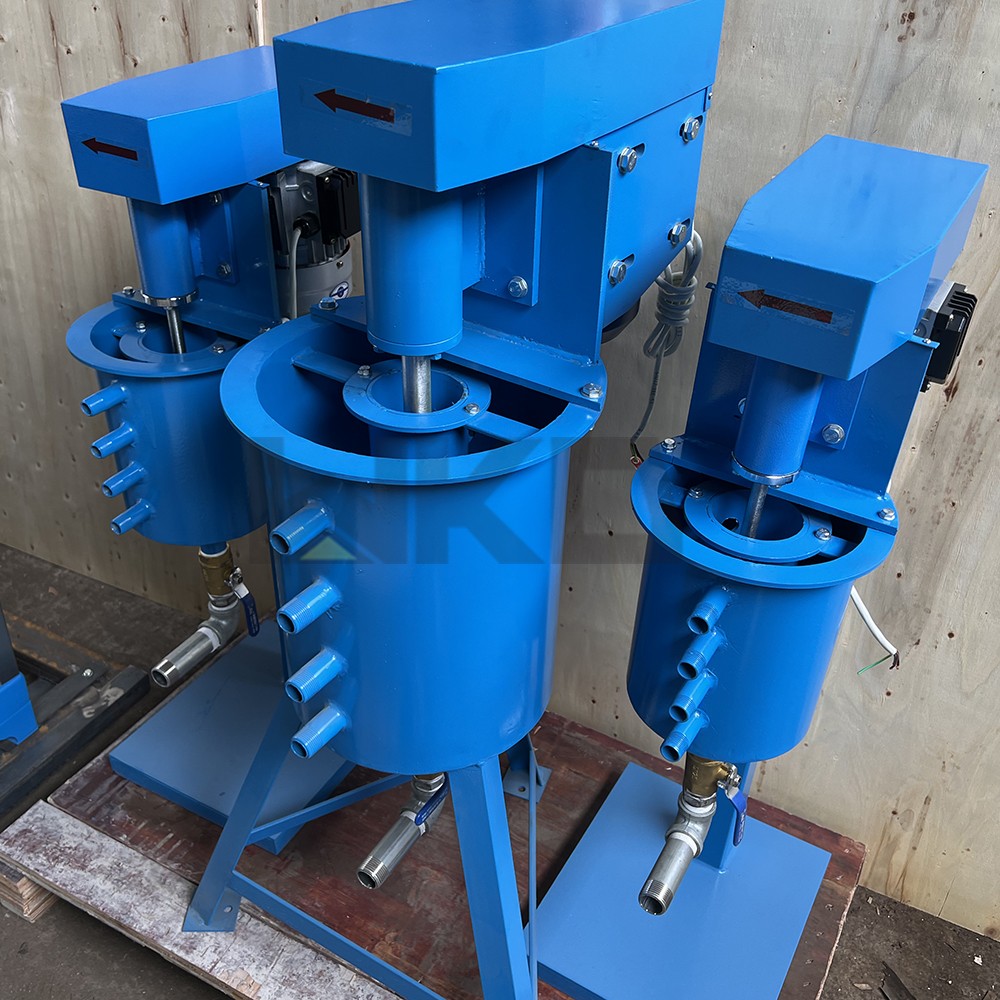

1. A 20 Litre flotation feed conditioner tank to store your grinding mill product.
2. An 8 cell rougher/scavenger flotation bank of 1 Litre each cell.
3. A 5 Liter conditioner & mixing tank.
4. A 4 cell first stage cleaning of 0.75 Litre each cell.
5. A 5 Liter conditioning vessel.
6. A 2 cell second cleaner bank of 0.5 Litre each cell.

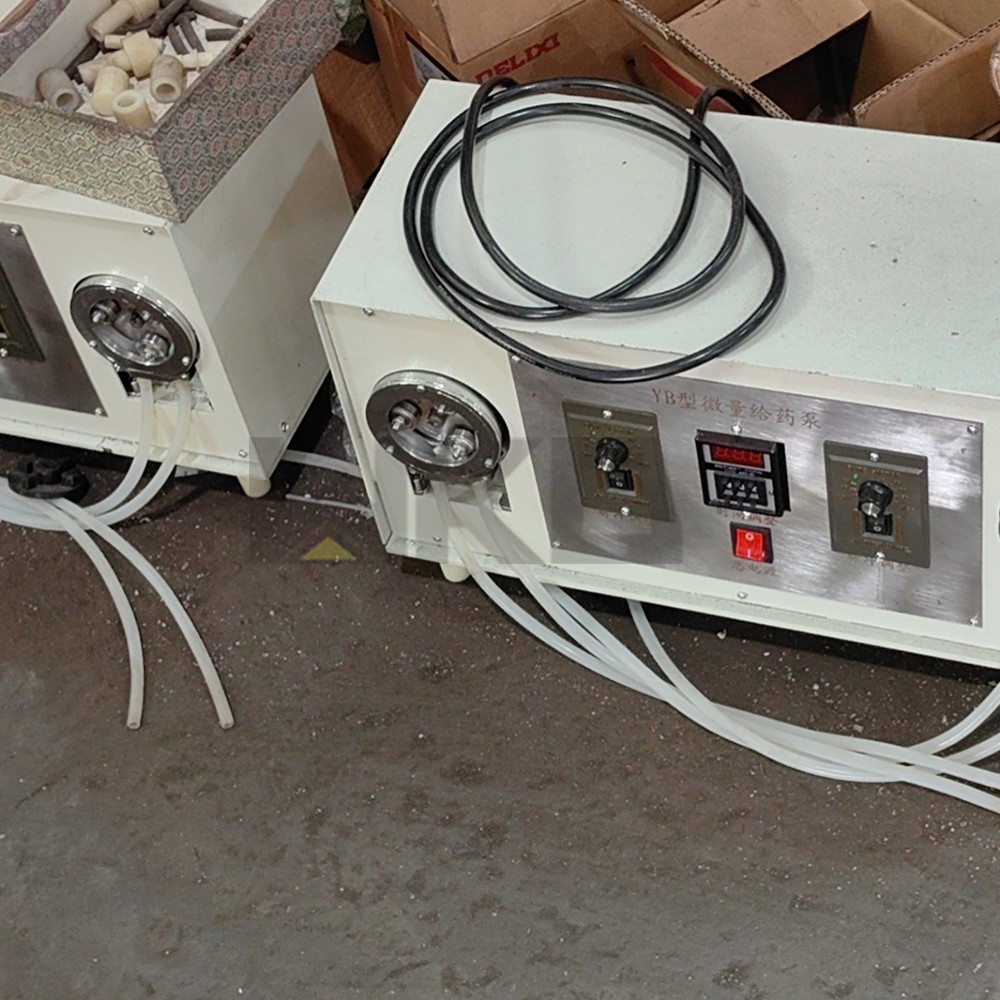

Micro-dosage reagent pumps and hose pumps for concentrate/slurry stream.1-year-warranty
Assuming a 35% flotation density and a 2.8 SG to your test ore feeding this laboratory flotation pilot plant, you will have
approximately 25 minutes of conditioning time with 15 minutes of rougher flotation time if operated at 13 kilos/hour (200 grams / minute).
Component of XFLB closed circuit flotation machine

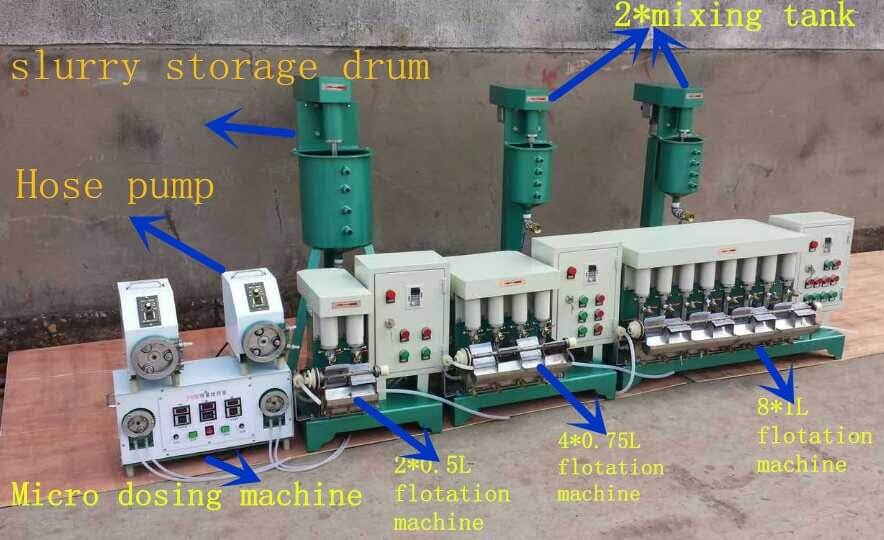

Complete set: 1 slurry storage bucket, 2 mixing buckets, 1 micro feeder and 2 rubber hose pumps.
Continuous flotation machine: 1 liter 8 tank 1; 1 set of 0.75L 4 slots, 1 set of 0.5L2 slots. If the customer needs special combination can be put forward separately.

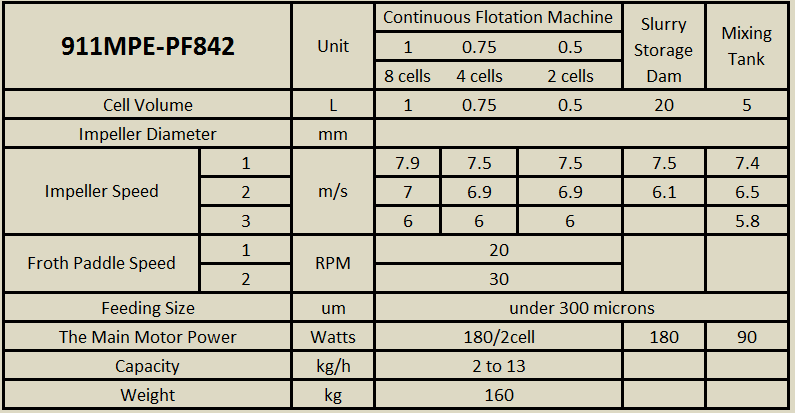

The specification of small flotation system
